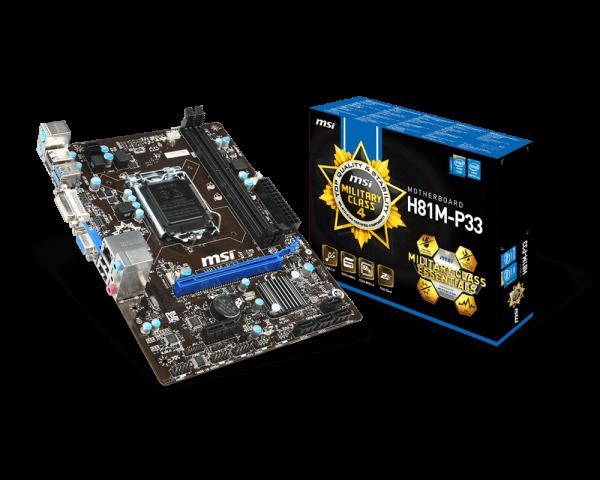

Mainboard MSI H81M-P33

Chủng loại	H81M-P33
CPU hỗ trợ	• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Chipset	• Intel® H81 Express Chipset
Bộ nhớ trong	• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max - Supports Dual-Channel mode
VGA onboard	• SATAIII controller integrated in Intel® H81 chipset - Up to 6Gb/s transfer speed. - Supports two SATAIII ports (SATA1~2) by H81 • SATAII controller integrated in Intel® H81 chipset - Up to 3Gb/s transfer speed. - Supports two SATAII ports (SATA3~4) by H81
Âm thanh	• Chip integrated by Realtek® ALC887 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 spec
Khe mở rộng	• 1 x PCIe 2.0 x16 slot • 1 x PCIe x1 slot
Cổng giao tiếp trước và sau	- 1 x PS/2 keyboard port - 1 x PS/2 mouse port - 4 x USB 2.0 ports - 2 x USB 3.0 ports - 1 x RJ45 LAN Jack - 1 x 3 in 1 audio jack - 1 x Graphics card port - 1 x DVI-I port
Công nghệ tích hợp	• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. • The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Kích thước	• 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor
